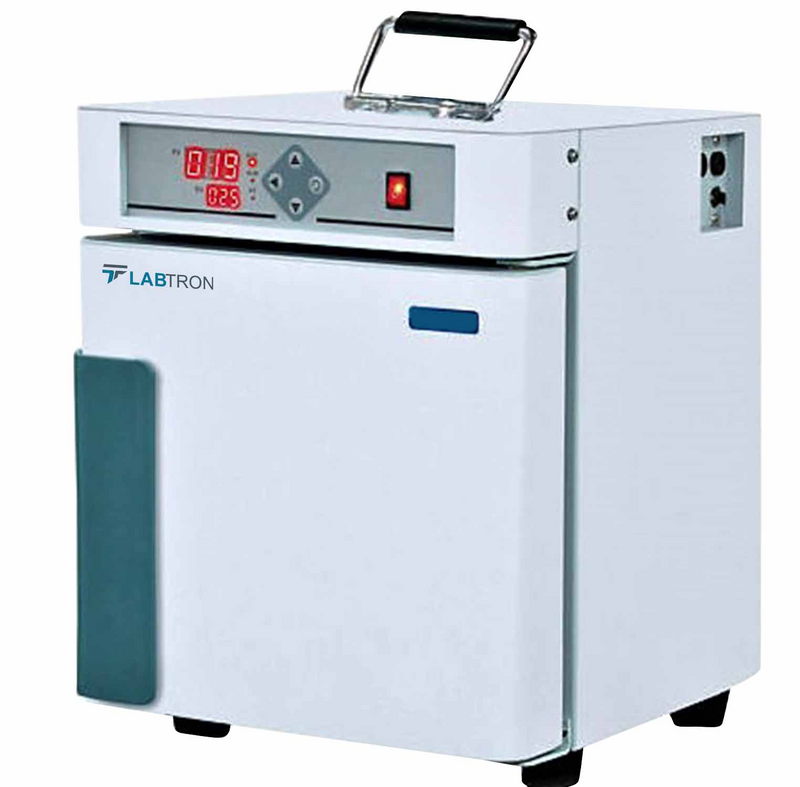

Portable Incubator LPI-A11

Overview

Portable Incubator LPI-A11 is a vertical style, streamline shape and light weight unit featured with PID microprocessor controller technology that adopts easy operation system and improves work efficiency. It works in ambient temperature range of +5 to 80°C and has 8 L volume capacity with natural air convection type of circulation. This handy incubator is primarily designed for various outdoor working environment for microbial cultivation and heated storage.

Specifications :

Air cycle Mode

Natural air convection

Function

Temperature range	RT +5 to 80 ℃
Temperature resolution ratio	1 ℃
Temperature motion	± 1.0 ℃
Temperature uniformity	± 1.5 ℃

Body structure

Inner chamber	Stainless steel
Outer shell	Galvanized steel
Insulation layer	Polyurethane interlayer
Heater	Explosion proof alloy heating wire

Controller

Temperature controller	PID Intelligent
Temperature setting mode	Touch button setting
Display mode	HD bright LED
Time setting range	0 to 9999 min
Operation function	Fixed temperature operation, Timing function, Auto stop
Additional function	Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locking, Power-off parameter memory
Sensor	Temperature and humidity sensor

Safety Device

Parameter memory over-temperature audible alarm, automatic power-off function

Technical specification

Inner chamber dimension (W × L × H)	200 × 200 × 200 mm
Exterior dimension (W × L × H)	310 × 320 × 400 mm
Packing dimension (W × L × H)	370 × 370 × 435 mm
Volume	8 L
Power consumption	100 W
Power supply	220 V/ 50 Hz
Net weight	10 kg
Gross weight	12 kg

Features :

Working temperature range of RT +5 to 80 ℃ and natural air convection type of circulation
Compact, portable and stackable design saves bench space
Carrying strap provides easy transport of samples
PID microprocessor controller with 0.5 °C control sensitivity
LED display with accuracy of 0.1 °C for precise temperature monitoring
Constant time setting function for personalized culture experiment requirement
Side door opening (180°) and seal connector for easy loading of samples inhibits cross contamination
Automatic rectification in case of temperature sensor deviation
Audible and visual alarm system protection for over temperature
Auto circuit breaker function protects unit from power surges
Mirror stainless steel exterior with curved angle design for easy maintenance
Cold-rolled rugged steel with anti-bacterial powder coating resists dents, cracks, and chemical attack

Applications:

Ideal incubator for basic incubation and heated storage applications. Used in industrial, mining establishments, medical, sanitary field, biochemistry and agricultural science field for laboratory cultivation of bacterial culture, breeding and ferment.
